Get to know our products.

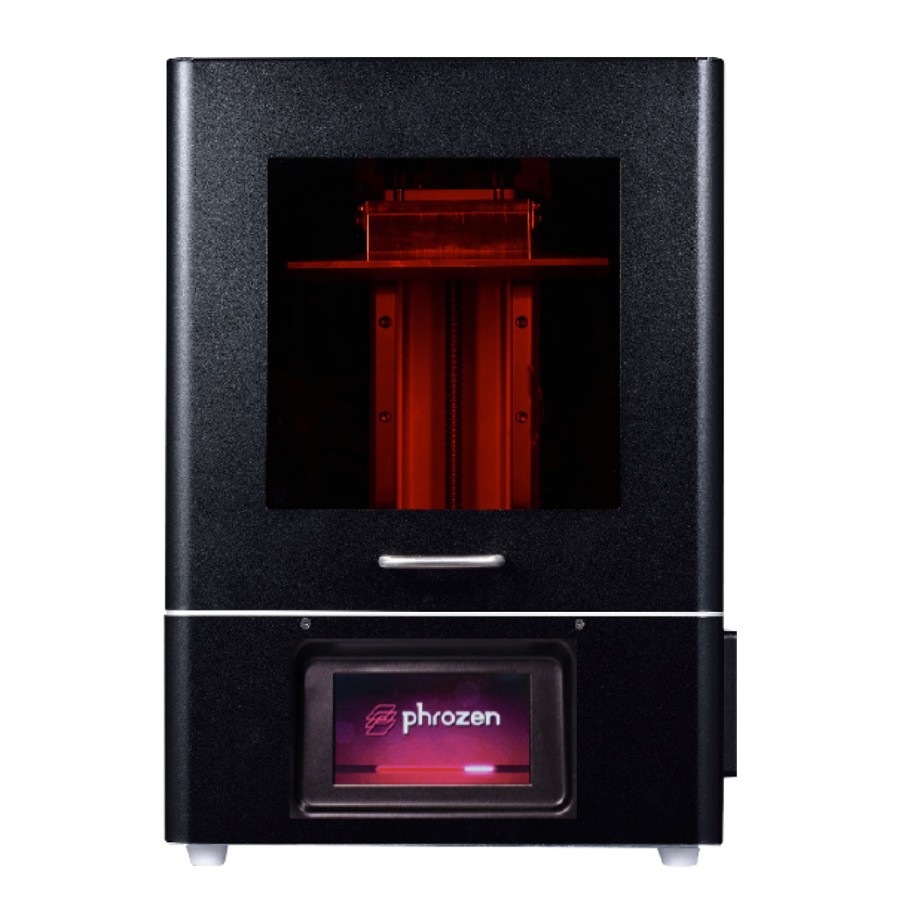

Phrozen XL - 3D Printer
Large area printer for printing templates.
Printing area 3 times larger than Phrozen.
Wax. Model.
Guides. Plates.
DIGITAL

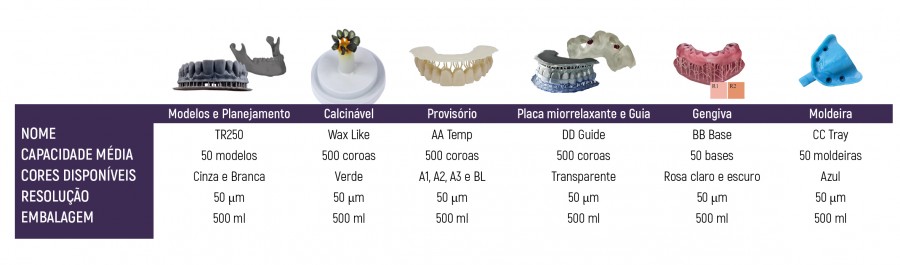

Open system that accepts several resins on the market.
Advantages:
• Ideal for laboratory and dental clinics
• Excellent cost / benefit to enter the digital world
• Accurate 3D printing results
• Free ChituBox software ( Download here )
• High resolution of 75microns
• Manual 3D printer Phrozen Click Here

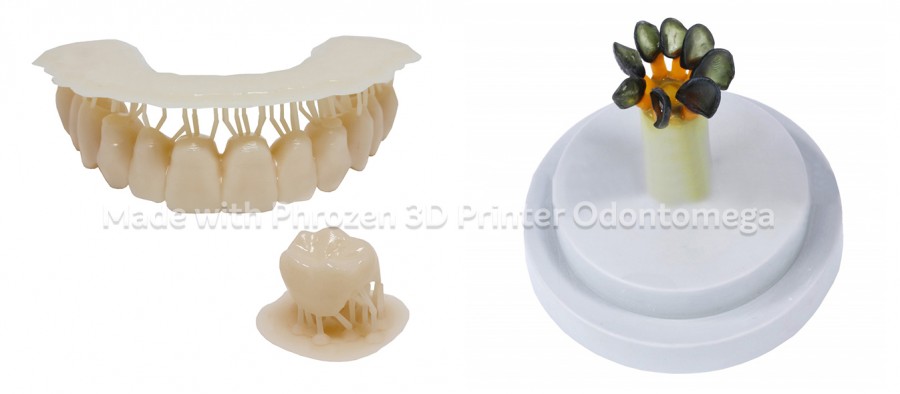

Printing capacity:
• 4 models in 2 hours or 24 models in 5 hours
• 15 Surgical Guides in 3 hours
• 210 crowns for injection or casting in 2 hours
• 12 whole sets for injection in 1 hour
• 210 provisional crowns in 2 hours
• 6 muscle relaxants in 2 hours

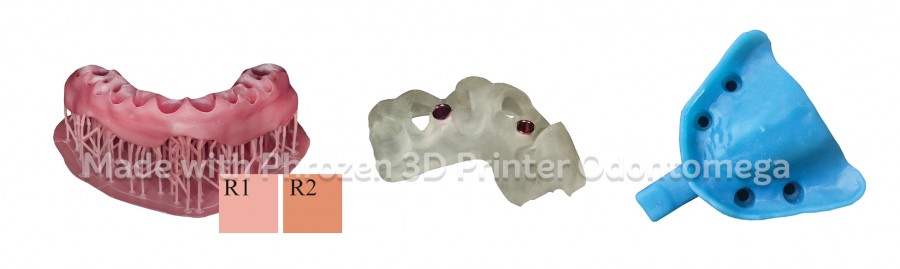

Ideal for:
• Models
• Parts for injection / pressing
• Artificial gum
• Surgical guide
• Provisional
• Myorelaxative plates
• Total Prosthesis (Gum + Teeth)
• Individual trays
What makes Phrozen different
of all other printers?
• Original resins already registered with the best cost in Brazil.
• Ultra stable Z axis with double rail and bearing.
• Matrix LED with parallel direction, improving light efficiency.
Results in more quality and better time.
• Free for any resin on the market.
Specifications:
Technology: LCD
XY resolution: 75μm
Min layer: 10μm
Speed: 30mm / hr
Printing platform: 19x12x20cm
External measures: 33x29x47cm
Weight: 21kg
Light: ParaLED Matrix
Formats: STL, SLC, ZIP
Access: USB / LAN / WIFI
09-137 | Phrozen XL Color Black
Voltage: Bivolt
