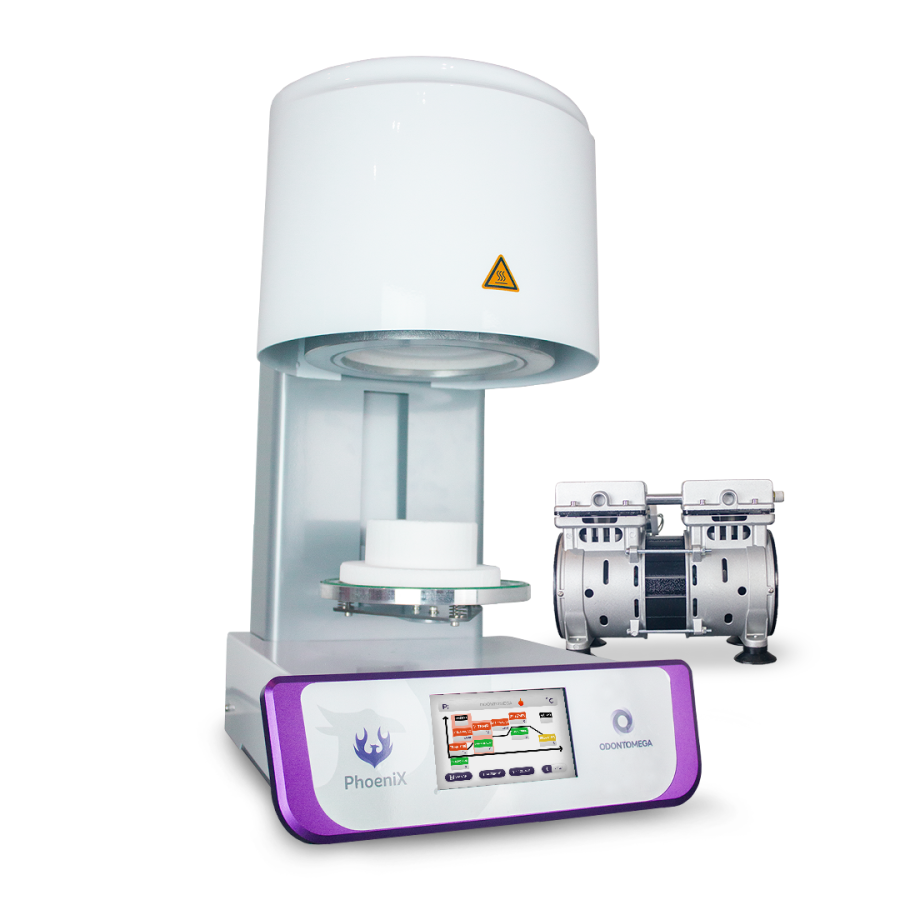

The Phoenix Porcelain and Metal-Ceramic Oven is the ideal and reliable solution for those seeking a high-quality, impressive firing procedure oven with excellent productivity and cost-effectiveness.
Manufactured for Odontomega, the Phoenix ceramic oven is compact in size yet offers high performance. It's an oven that will deliver results, speed, and precision over many years of work.
Ideal for glazing, makeup, crystallization, and firing ceramics and disilicates.
Functions of the porcelain chamber:
• The firing program can be set for 1 or 2 stages, with the 2-stage option allowing for the selection of 2 holds, 2 speed ramps, and 2 maximum temperatures.
• High-quality automatic temperature adjustment function to ensure the actual temperature error is within +/- 1 degree.
• Quartz spiral muffle.
• Platinum thermocouple.
• Automatic temperature calibration before each firing procedure.
• Low-noise platform with programmable speed and position.
• True-color touchscreen, easy to operate.
• 50 custom programs and 8 pre-defined programs for Rosetta, MiYo, InSync, and Zirkom.
• Display of firing stage and time on the screen.
Maximum Temperature:
The Phoenix oven has a maximum temperature of 1200°C, which can be maintained at this temperature for up to 2 hours, with an increase of 200°C per minute and an operating range of 50/60Hz.
Platform Position:
At the beginning of the program, during the PRE-HEAT stage, the elevator will rise at the defined time and in 2 stages that can be configured to be lower or higher, making the drying mode fully programmable.
Ventilation and Cooling:
The device is equipped with a fan. The fan activation and deactivation are automatic. The fan prevents the device from overheating and contributes to the operational safety of the system.
Included Vacuum Pump:
• 250W power
• 63L/min suction
• 1650 RPM / 60Hz
• Maximum Vacuum 745 mmHg
• Maximum noise level of 51 dB (super quiet)
With the purchase of the PhoeniX C, you will receive a complete operational training and included support.
Voltage: 220v
Technical Specifications:
• Product Size: 27 X 36 X 53 cm
• Usable measurement (firing chamber): 9cm (3.5")
• Net Weight: 20Kg
• Total Package Weight: 23.5Kg
