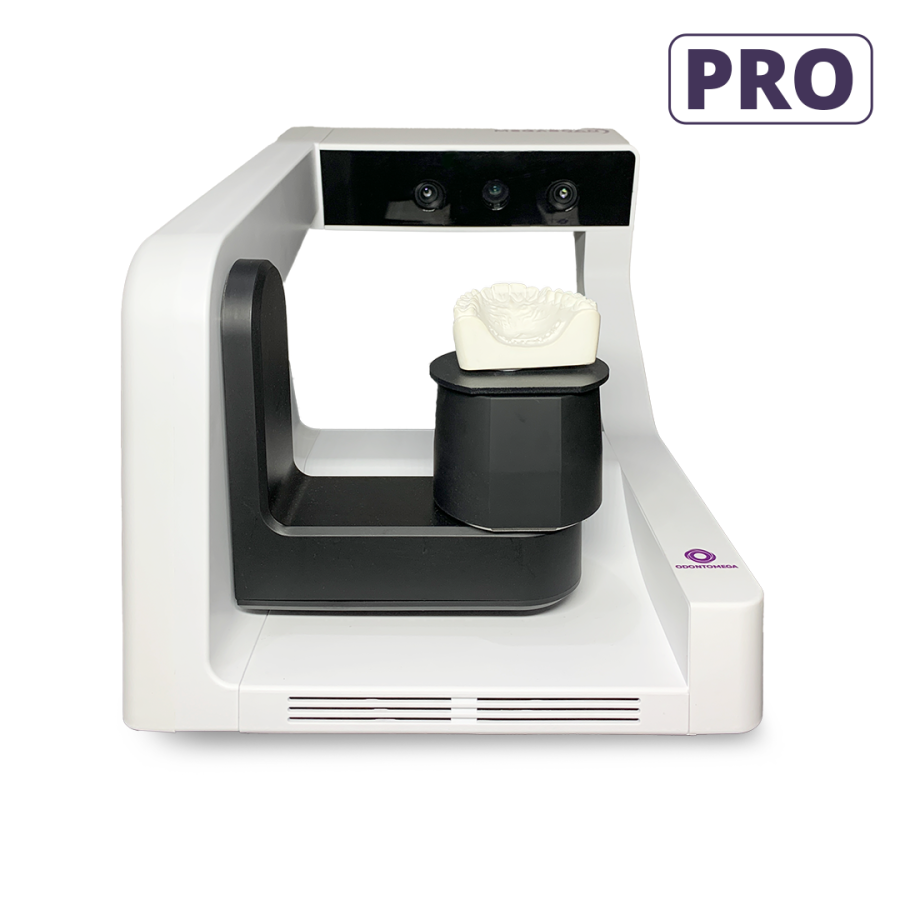

MegaScan - Desktop 3D Scanner

Reference: 09-136 - OdontoMega
3D Equipments

Add to Cart

Available in Partners

The MegaScan PRO is a desktop scanner developed to bring dental laboratories into the digital workflow with efficiency, precision, and high performance. Designed to meet the current demands of dental labs, it combines scanning speed, mechanical stability, and capture quality in a complete and reliable system.

The PRO version incorporates a new camera and enhanced sensors, delivering up to 30% faster scanning speed. The mechanical arm has been redesigned to provide greater stability, faster movements, and significantly quieter operation, ensuring consistent results and comfort during continuous use.

Speed
The MegaScan PRO is among the fastest desktop scanners in its category, delivering high performance across multiple applications: scanning 1 to 8 dies in 13 seconds, single arch in 10 seconds, impressions in 12 seconds, and occlusion in just 3 seconds.



Accuracy
Even at high speeds, the system maintains accuracy of up to ≤ 9 µm, ensuring excellent dimensional fidelity. The camera system guarantees detailed and reliable capture for a wide range of prosthetic applications.

High Scanning Efficiency
Using an advanced algorithm, the minimum scanning angle is only 8°, allowing most dental cases to be scanned without sectioning, while accurately capturing corners and complex areas.

Automated Scanning

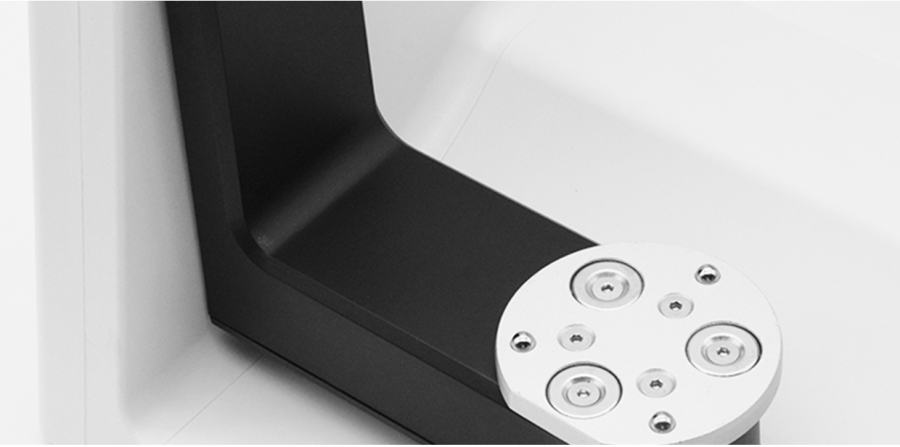

Features a fully automatic rotating platform that is easy to operate and ideal for obtaining highly repeatable 3D models.

Open System and Compatibility
Operates as an open system, generating STL, OBJ, and PLY files compatible with the main CAD/CAM software platforms on the market. Integration with Exocad is direct and automatic.



Durability and Reliability
Equipped with a newly designed cooling system that reduces projector fatigue, increasing equipment lifespan and ensuring stable performance over time.

Training and Support
Free training and technical support provided exclusively by Odontomega, with software fully available in Brazilian Portuguese.

Applications

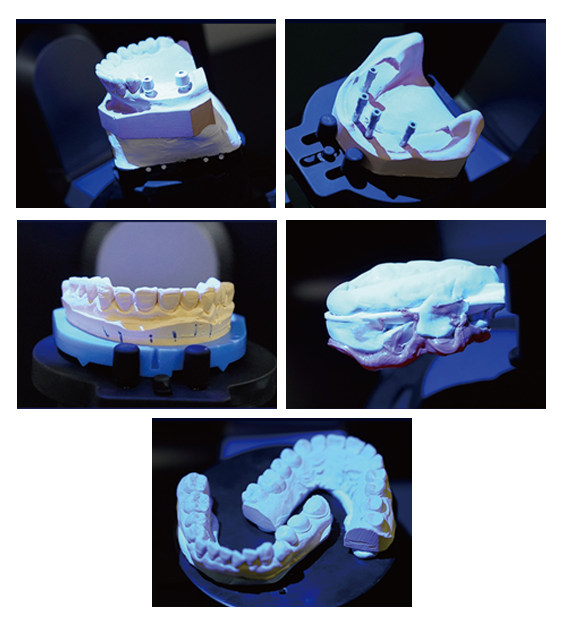

Plaster models, multiple cases, articulators, dies, orthodontic planning, impressions, and abutments.

Technical Specifications Performance and Scanning Speed Dies (1 to 8): 13 s Single arch: 10 s Impressions: 12 s Occlusion: 3 s

Capture Quality and Accuracy
Accuracy: ≤ 9 µm
Camera resolution: 3.7 MP
Scanning area: 100 × 100 × 75 mm

Files and Software
Output formats: STL, OBJ, and PLY
Software in Portuguese with unlimited free updates

Dimensions, Weight, and Connectivity
Dimensions (W × D × H): 250 × 390 × 240 mm
Weight: 5 kg
Connectivity: USB 3.0

Minimum Computer Requirements
Operating system: Windows 10 or 11 Pro 64-bit
Processor: Intel Core i5 or i7 10th generation or higher (NOT COMPATIBLE WITH AMD)
RAM memory: 16 GB or higher
Disk space: 128 GB free
Graphics card: Nvidia GeForce GTX 1060 6 GB or higher

When purchasing the MegaScan PRO, receive complete operational training and lifetime support included.

Other Informations

Voltage: Bivolt

Observations

Included Accessories
The MegaScan PRO comes with a complete set of accessories that ensure versatility and precision across different scanning applications, including a calibration plate, impression base, articulator base, mandibular base with elastic fixation system, universal model base, and a dedicated base for scanning up to 8 dies.
