3D Model PrintaX Resins

Dental 3D Printax Resins for 3D Printing on Phrozen or LCD/DLP Printers.

For the production of models, model duplication, and other model 3D work, we recommend condensation silicone (Megalabor (click here)).

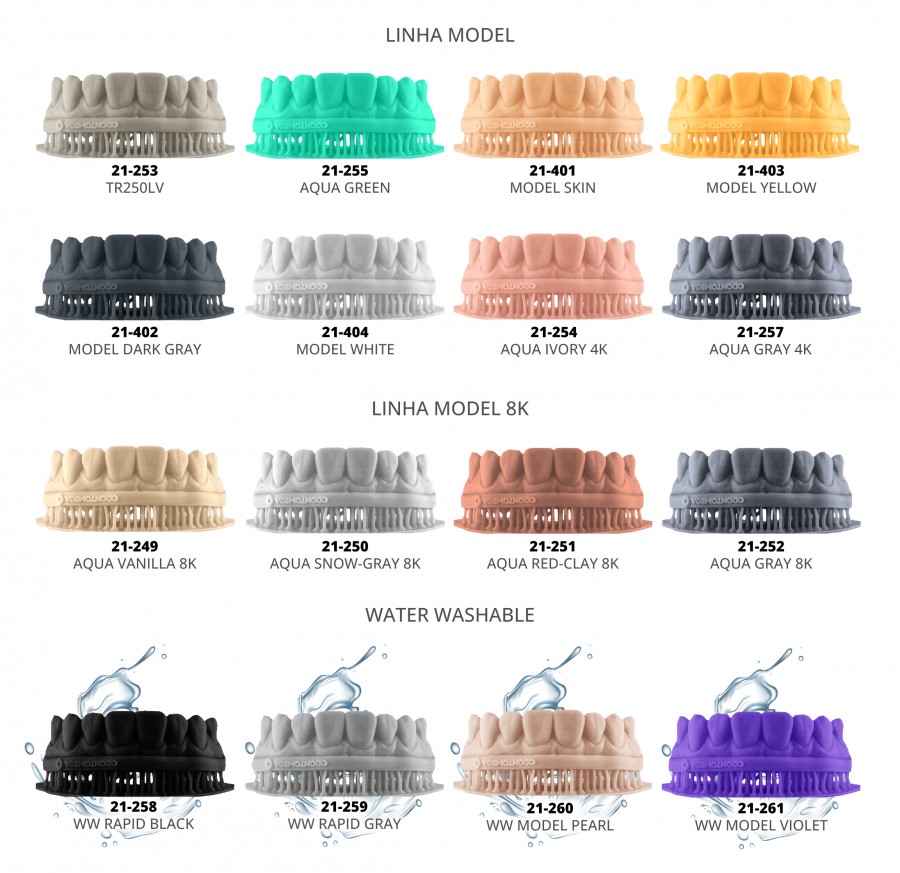

3D MODEL RESINS
Model Line

• 21-240 - Phrozen Speed - 1 KG
• 21-253 - Phrozen TR250LV - 1 KG
• 21-513 - Phrozen TR300 - 1 KG
• 21-255 - Phrozen Aqua Green - 1 KG
• 21-254 - Phrozen Aqua Ivory 4K - 1 KG
• 21-257 - Phrozen Aqua Gray 4K - 1 KG
• 21-249 - Phrozen Aqua Vanilla 8K - 1 KG
• 21-250 - Phrozen Aqua Snow-Gray 8K - 1 KG
• 21-251 - Phrozen Aqua Red-Clay 8K - 1 KG
• 21-252 - Phrozen Aqua Gray 8K - 1 KG
• 21-258 - Phrozen WW Rapid Black - 1 KG
• 21-259 - Phrozen WW Rapid Gray - 1 KG
• 21-260 - PrintaX WW Model Pearl - 1 KG
• 21-261 - PrintaX WW Model Violet - 1 KG
• 21-401 - PrintaX Model Skin - 1 KG
• 21-402 - PrintaX Model Gray - 1 KG
• 21-403 - PrintaX Model Yellow - 1 KG
• 21-404 - PrintaX Model White - 1 KG

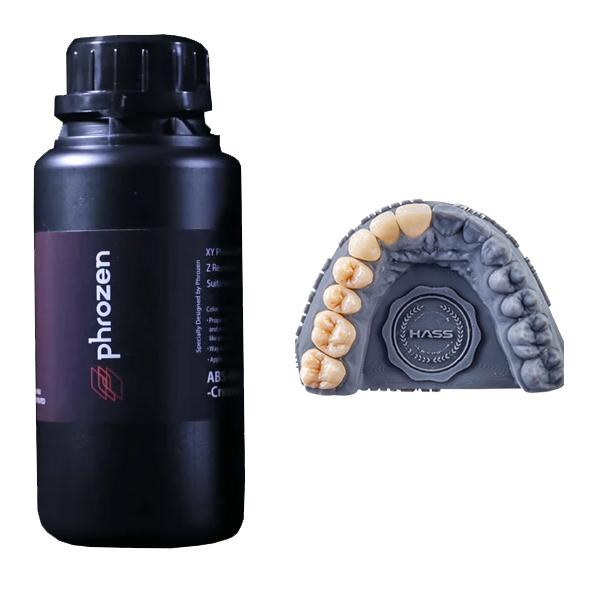

PHROZEN AQUA 3D RESINS 1 KG

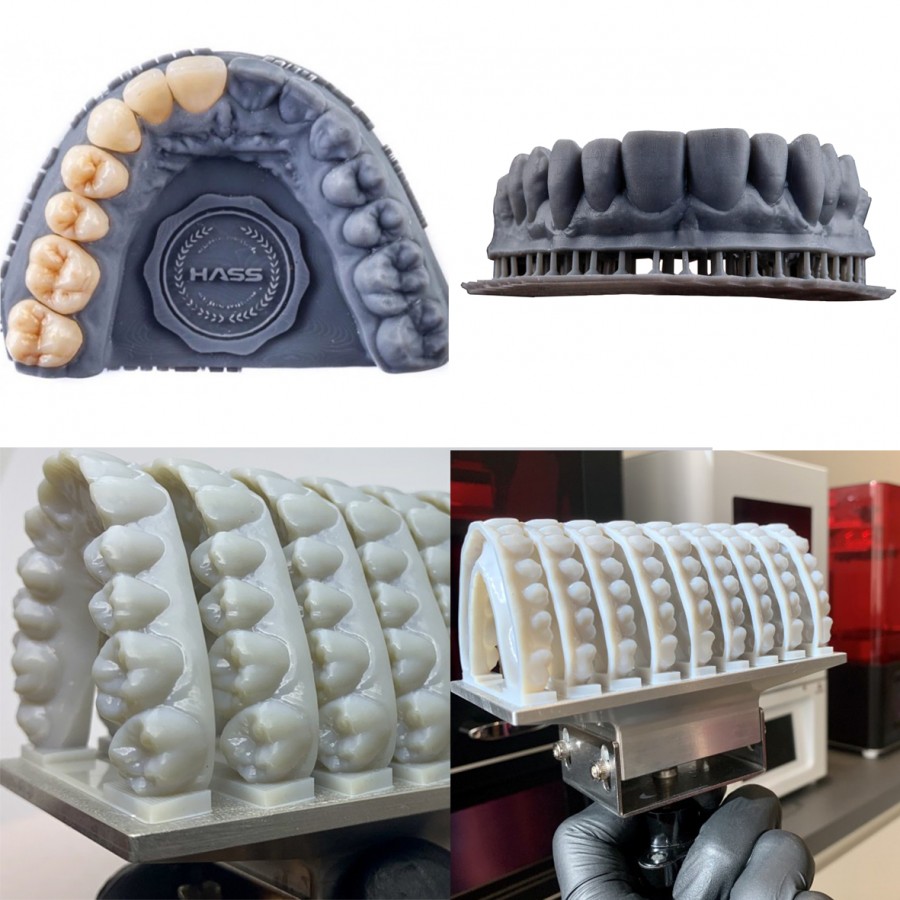

Phrozen's dental Aqua resins are designed for fast printing, producing 3D models with high precision and durability.

• XY Resolution: 35 to 50 µm;
• Recommended layer thickness: 50 µm;
• Viscosity: 125 cps;
• Elongation: 21%;
• Strength: 24 MPa;
• Shore Hardness: 86D;
• Impact Resistance: 1.81 KJ / m2.
• Density: 1.12 g/cm3

PHROZEN WW (WATER WASHABLE) 3D RESINS 1 KG

Designed to be easily cleaned with water, PrintaX water-washable resins are robust, durable, and print quickly.

• XY Resolution: 50 µm;
• Recommended layer thickness: 50 µm;
• Ways to rinse: Clean with water and spray with an air gun;
• Viscosity: 120 cps;
• Elongation: 14%;
• Strength: 15 MPa;
• Shore Hardness: 76D;
• Impact Resistance: 1.52 KJ / m2.
• Density: 1.11 g/cm3

PRINTAX WW (WATER WASHABLE) 3D RESINS 1 KG

Designed to be easily cleaned with water, the PrintaX WW Model resins are water-washable, low-odor, durable, and print quickly. Highly recommended for dental models.

• XY Resolution: 50 µm;
• Recommended layer thickness: 50 µm;
• Ways to rinse: Clean with water and spray with an air gun;
• Viscosity: 100-350 MPa-s;
• Elongation: 14.9%;
• Strength: 15 MPa;
• Shore Hardness: 85-88D;
• Impact Resistance: 78 J/m.

PHROZEN TR250LV 3D RESINS 1 KG

• Printing approximately 50 models per 1kg bottle;
• Excellent level of detail;
• Resolution: 50 to 100 µm;
• Viscosity: 230cps;
• Density: 2.3 g/cm3;
• Shore Hardness: 79D;
• Strength: 75 MPa;
• Elasticity: 950 MPa;
• Heat and pressure resistant, ideal for making splints, miorrelaxation splints, and orthodontic aligners.

PRINTAX MODEL 3D RESINS 1 KG

• Excellent level of detail;
• Resolution: 50 to 100 µm;
• Density: 1.28 g/cm3;
• Shore Hardness: 85 D;
• Strength: 75 Mpa;
• Elasticity: 350 MPa;
• Heat and pressure resistant, ideal formaking splints, miorrelaxation splints, and orthodontic aligners.

Observations

MODEL RESINS 3D CLEANING INSTRUCTIONS (EXCLUDING WW RESINS):
1. Use isopropyl alcohol spray or an ultrasonic cleaner for 5 minutes.
2. Dry completely before post-curing.
3. Post-cure: 3 cycles of 2 minutes in a photo oven with 405nm waves and 60W.

Note: Ethanol can be used as an alternative to isopropyl alcohol.

WW 3D RESINS (WATER WASHABLE):
1. Wash with water or an ultrasonic cleaner for 5 minutes.
2. Dry completely before post-curing.
3. Post-cure: 3 cycles of 2 minutes in a photo oven with 405nm waves and 60W.
