Freedom HD Dental Scanner

OdontoMega
3D Equipments

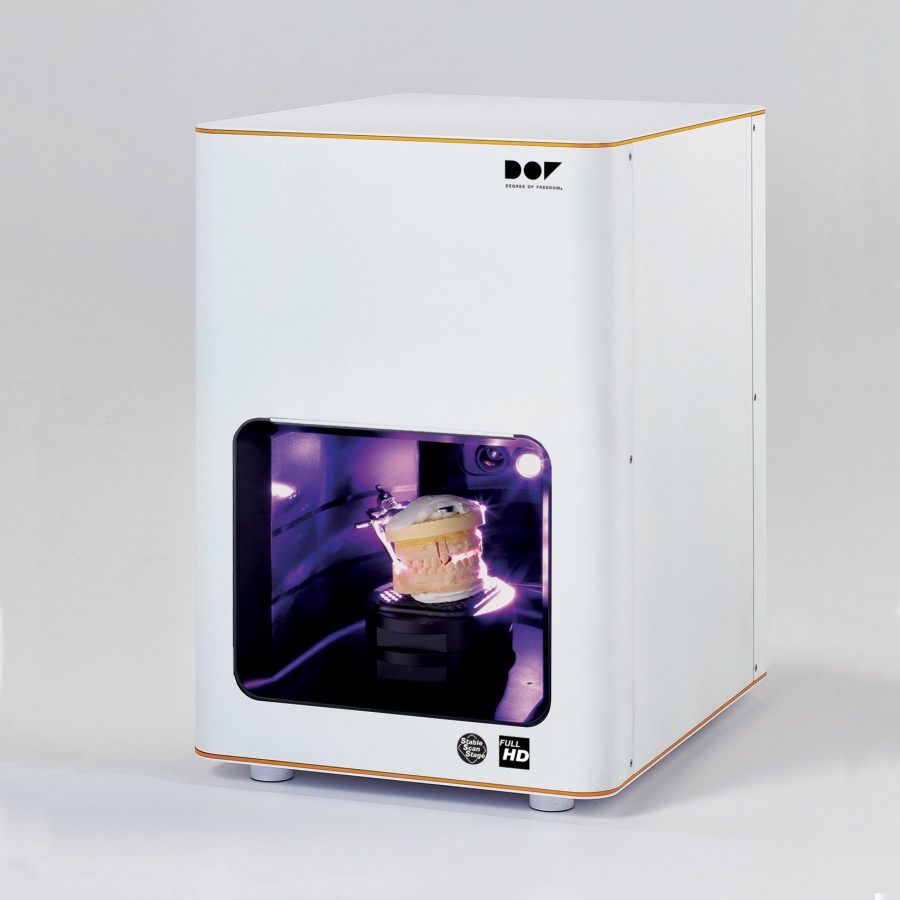

One of the most accurate scanners in the world. With this bench scanner your laboratory will obtain images in HD.

Moving camera system, no need to fix the model! Just load and scan.

Automatic Eco Mode
When the projector is on and not used for a certain period of time, the projector will automatically shut down. This increases the life of the projector and does not consume power unnecessarily.

Self diagnosis
The mechanism determines whether the projector is abnormal by checking the temperature and voltage on the device.

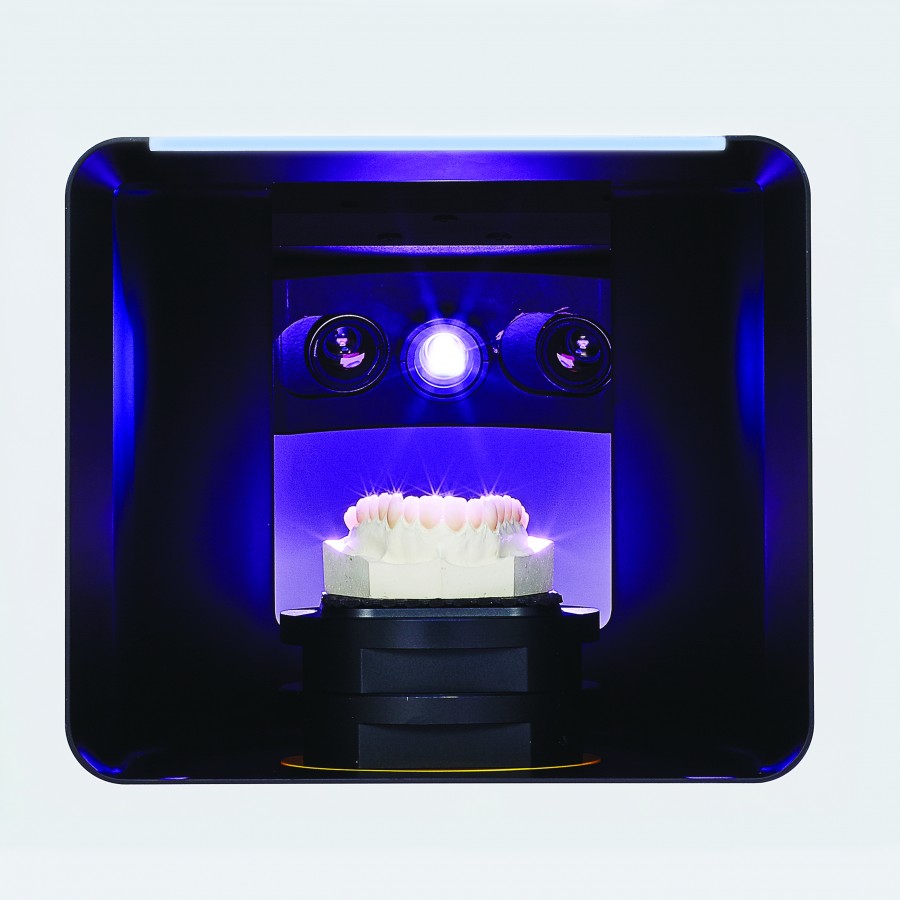

Two cameras with 2 megapixels
Freedom HD is a 2 megapixel HD equipped with the area scanning method.
Premium scanner made to implement innovative technology.

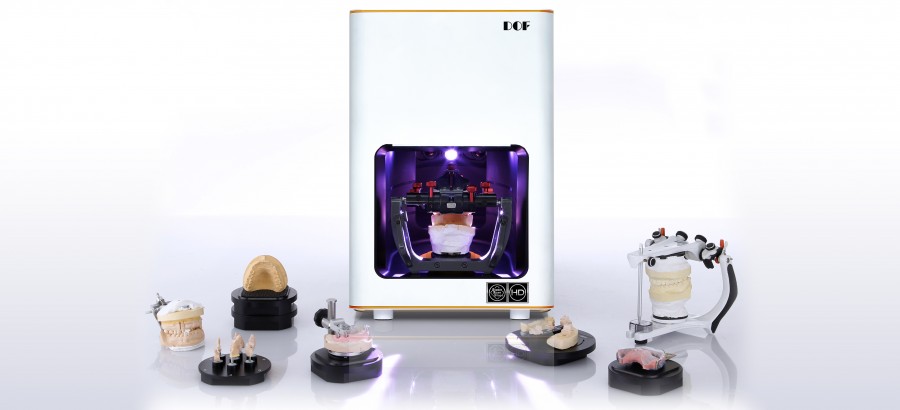

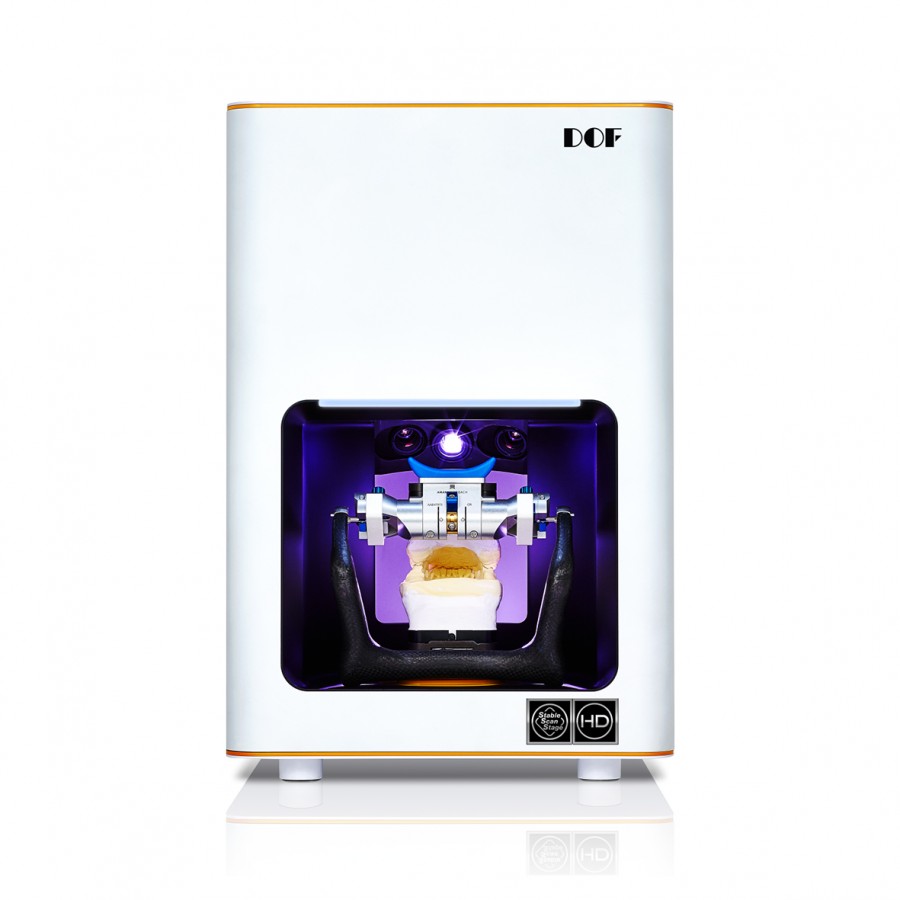

Scanning articulators
The model is scanned as it is mounted on the articulator to obtain an accurate occlusal relationship.

Interproximal scanning
If you select the interproximal scanning function in the software, it will scan perfectly between interproximal scanners.

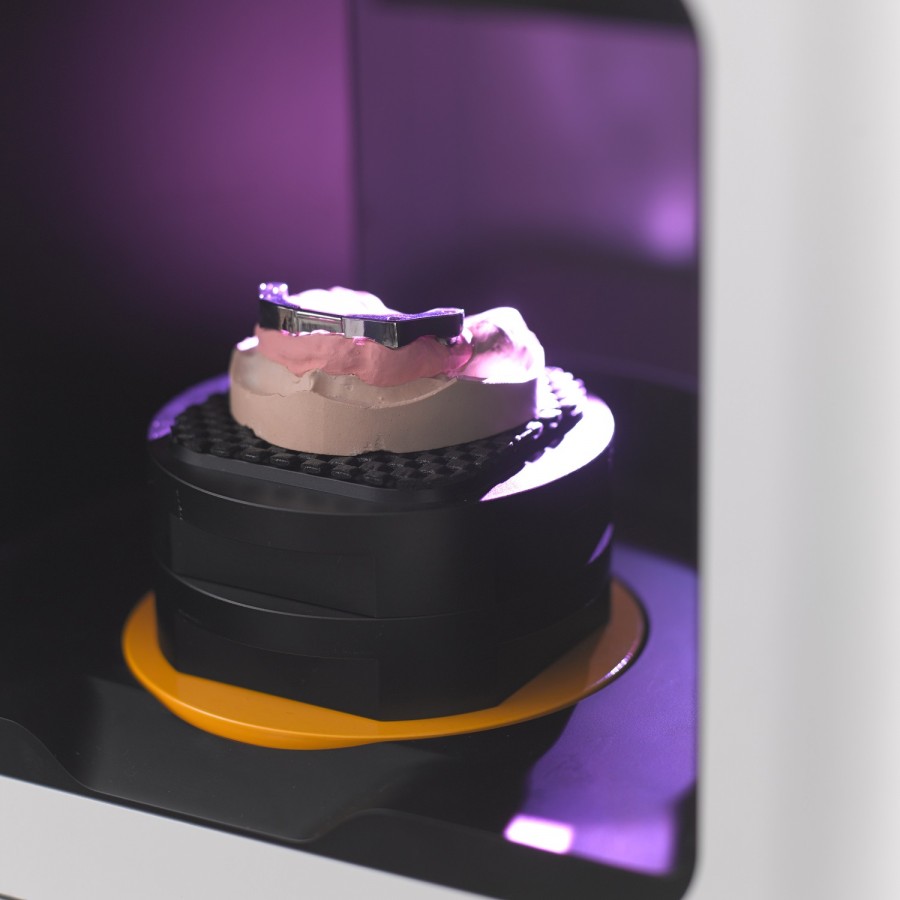

Scanning for waxes
You can easily scan the prostheses made of wax to correct or complete them.

Total Prosthesis Scan
Here you can copy a full denture without having to buy additional options. PT's internal and external parts can be scanned.

Implant scanning
It is a function in which the upper part, the cylinder and the sides are digitized and the data obtained and the coordinate values ​​are saved and used in the Exocad software.

Pencil line scanning
Any hand-drawn marking on the model can be purchased together with the 3D data to be used as a reference in the prosthesis manufacturing process.

Auto alignment
The program automatically calculates the points without having to manually align them.

Additional scanning
You can change the model's location during the scanning process or scan and combine more models.

Expert scanning mode
The user can freely scan in any case with expert mode.

Impression scanning
It scans narrow and deep moldings, and its independent target scanning technology automatically matches the data acquired from the sides, front and rear.

Scanning gums
Gum data can be acquired easily without sticking.

Orthodontic scanning
Here you can scan the orthodontic model quickly and easily.

POST & CORE scanning
By scanning and merging impressions and plaster models, you can acquire complete data, from deep roots to preparation teeth.

V.A. SET UP
Even in cases where the articulator is not used, the scanner may have saved it as the coordinates in a virtual articulator to reproduce the movements of the jaw.

Hybrid scanning
From the ScannApp, DOF software can be used to control Freedom and RENISHAW TOUCH PROBE at the same time, it is possible to manufacture with precision.

System required
System - Windows 7, 8, 10 (64-Bit)
RAM- 16GB
Graphics Processor - Recommended over 2GB (NVIDIA GeForce GT750Ti)
HDD / SSD - 500GB or greater / 128GB or greater
CPU - Intel 4th generation CPU i5 / i7-4790, Intel 6th generation CPU i5 / i7 - 6700
USB - 3.0

Components
Freedom HD 3D Scanner
2 Bases for scanning
1 base for calibration
1 Multi-Die base
1 Blue tack
1 Mesh Mat
5 Scan Target
